SBP-150-XFMR

Eco Power Equipment

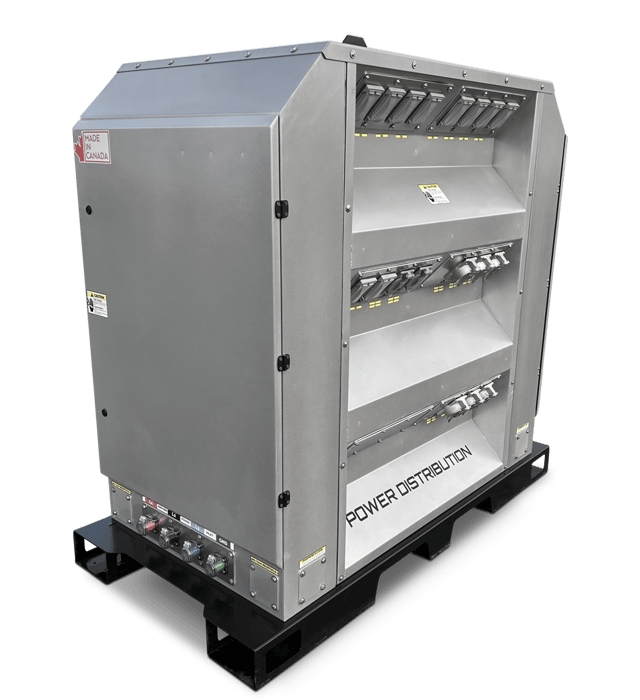

SBP1503
SBP1503 SBP-1505

Highly mobile 150kVa transformer panel with integrated power distribution.

SKU: SBP-150-XFMR

Our SPB transformer packages are ideal for lean site power distribution when using 480v or 600v supply voltages as the power source. Setting up a temporary power system that can run on generator power for a short period before switching to utility power is simple. Having a discrete temporary power supply has numerous advantages, and it ensures that projects get off to a good start and are prepared for all stages.

  • Integrated transformer with a selector switch to provide 120/208v three-phase power from 480 or 600v power
  • Configurable outlet glands to accommodate most types of common plugs: straight blade, twist locks, or pin and sleeve type connectors
  • Compact design for quick deployment and use
  • Camlock in and camlock out available
  • Primary and secondary transformer protection provided
  • Daisy chain & passthru available
Request a quote
Unit Specification Details
Inlet Voltage 480/600v
Switchable Yes
Enclosure Type NEMA 3R
Primary Transformer Protection

400 Amp MCCB, UL489, 0.8 Adjustable
Secondary Transformer Protection

400 Amp MCCB, UL 489, 0.8 Adjustable
Secondary Power Distribution 6 Gland Capacity

Lifting Bail

 Engineered and Rated Central Point Lifting
Skid Design Standard Pallet Jack Ready

Dimensions

72" L x 36"W x 72" T

Weight

2500 lbs
Spec Sheet Download

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates.

150 Front SBP-XFMR

Measure temporary power distribution in hours, not days and weeks.  Turn key setup and deployment.

  • Manage and distribute power in higher voltage to reduce wiring size and cost

  • Switchable between 480v and 600v with a face plate

  • Family-wide standard gland size between mobile panel boards and transformer panels to make reconfiguration to your design straightforward

  • Highly transportable - lifting bails, fork pockets and optional wheel kits to improve portability

  • Positioned for the future:  electrify locations quickly, to code, and a high degree of safety

  • All machines are designed for compliance with Canada and USA for transformer protection - turn-key deployment and use.

Shutdown
Screen Shot 2022-04-19 at 7.19.17 PM

Highly Configurable Gland Plate Design

We aim to develop a highly portable panel board that can be connected to a complete power system to deliver rapid and reliable power distribution while also being safe and secure.

The highly configurable design allows customers to add or remove receptacles as required for specific job requirements - our units have galvanized or aluminum plates that will enable custom modifications like adding strain reliefs or teck-type connectors.

Using a single gland configuration type across our whole portfolio, our clients can easily select and design their panels with the most popular distribution types from our standard configurations, saving time and money. We also work with custom configurations with practically any conventional receptacle type available, and we are happy to build to your requirement.

  • Designed with common-sized system glands to allow for updates and changes between deployments
  • Appropriate for use indoors or outdoors
  • Small and portable configuration
  • We've devised a production strategy that allows us to swiftly and efficiently produce glands in response to customer demand.
